Genuine Subaru Impreza Axle Shaft

Subaru Impreza Axle Shaft Parts Questions & Answers

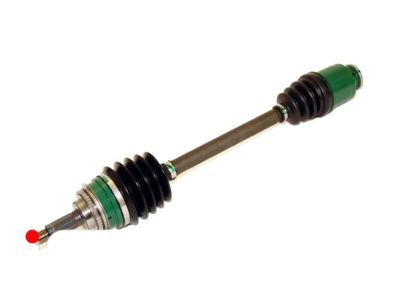

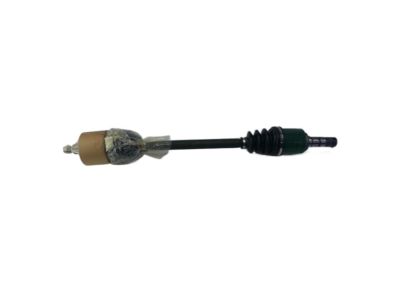

• Drive Axle-Front-Cv Shaft Assembly
  28321FE001
  Q: How Do I Remove and Replace a Drive Axle Assembly?

  A: Remove wheel cover, loosen axle nut and lug nuts. Raise vehicle and support on jack stands. Remove wheel, disconnect control arm from steering knuckle. Remove axle nut and axle shaft assembly. Remove spring pin, pry inner CV joint from Differential. Inspect bearings in knuckle. Use new spring pin to lock CV joint to differential stub shaft. Tighten axle nut, install wheel and lug nuts. Lower vehicle, tighten axle nut and lug nuts to torque. Check transaxle or differential lubricant level, add if needed.

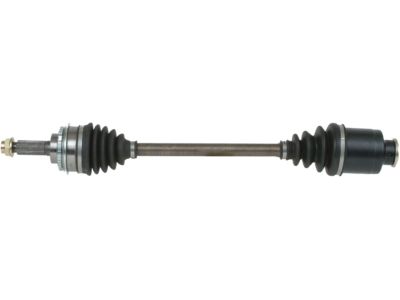

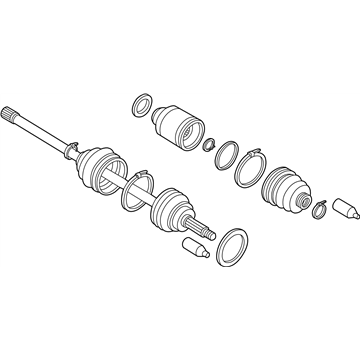

• Front Drive Shaft Assembly
  28321FE040
  Q: What are the functions of the driveshaft,Axle Shaft and Universal Joint in power transmission system?

  A: The driveshaft, connecting the transaxle and rear Differential, uses a splined sleeve yoke and is bolted to the differential pinion flange. It has universal joints at both ends and a third behind the center bearing, a ball-type bearing in a rubber cushion. All models have two front and rear axle shafts, with an inner and outer ball-and-cage type CV joint or a tri-pot inner joint and a ball-and-cage outer joint. The inner CV joint can be disassembled, but the axleshaft and outer CV joint cannot. Driveshaft issues are typically signaled by noise or vibration while driving.
