Genuine Subaru Legacy Fuel Tank

Subaru Legacy Fuel Tank Parts Questions & Answers

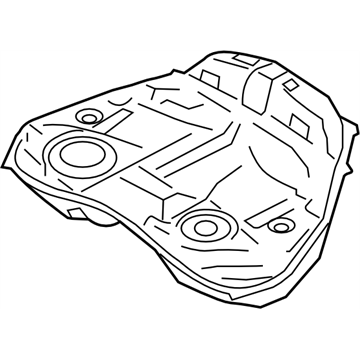

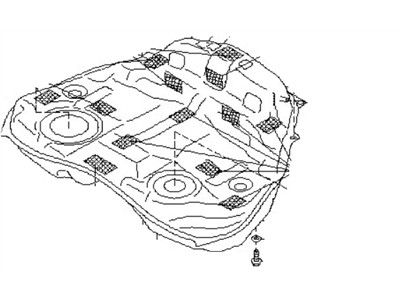

• Fuel Tank Complete
  42012AE02A
  Q: How to Remove the Fuel Tank from a Subaru Legacy?

  A: Alleviate the fuel tank and system pressure, then disconnect the negative battery terminal. Remove the rear seat, floor mat, and center console. Disconnect the fuel pump and level-sending unit harness. Unplug the fuel supply, return hoses, and parking brake cable. Remove trim carpeting and EVAP line protector. Disconnect the EVAP line. Loosen the back wheel lug nuts, lift the vehicle, and remove the rear wheels and front fuel tank covers. Drain fuel from the tank. Remove the fuel level sending unit, rear exhaust pipe, muffler, and driveshaft. Disconnect the ABS sensor. Remove the brake cable assembly and rear brake calipers. Support and lower the rear differential and suspension assembly. Disconnect the fuel filler neck hose, fuel tank pressure sensor hose, air vent hose, and EVAP hose. Finally, lower the fuel tank.

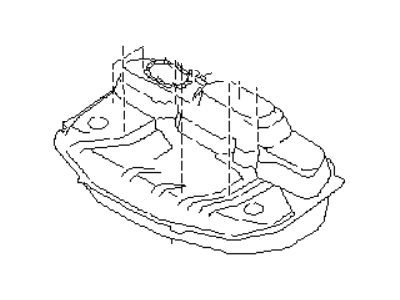

• Fuel Tank Complete
  42012AE03A
  Q: How Should Repairs to the Fuel Tank or Filler Neck Be Carried Out?

  A: All repairs to the fuel tank or filler neck must be carried out by a professional who has experience in this critical and potentially dangerous work. Even after cleaning and flushing of the fuel system, explosive fumes can remain and ignite during repair of the tank. If the fuel tank is removed from the vehicle, it should not be placed in an area where sparks or open flames could ignite the fumes coming out of the tank. Be especially careful inside garages where a gas-type appliance is located, because it could cause an explosion.
