4WD Vacuum Switch fit your 1988 Subaru GL Series

4 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.F/T 4WD

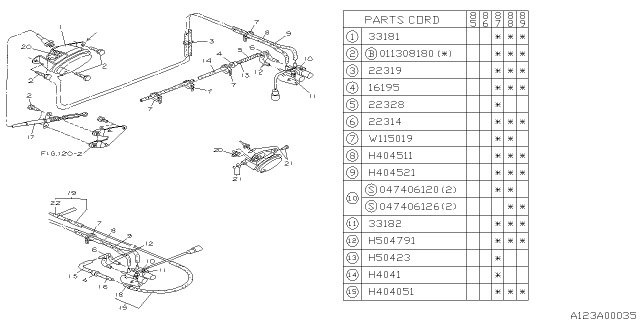

    1988 Subaru GL Series 4WD Vacuum Switch Diagram 1
  • 2.F/T 4WD

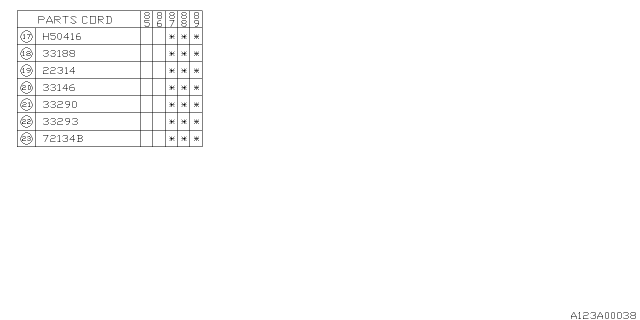

    1988 Subaru GL Series 4WD Vacuum Switch Diagram 2
  • 3.P/T 4WD

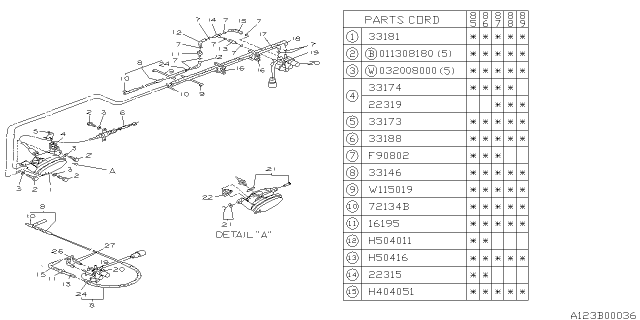

    1988 Subaru GL Series 4WD Vacuum Switch Diagram 3
  • 4.P/T 4WD

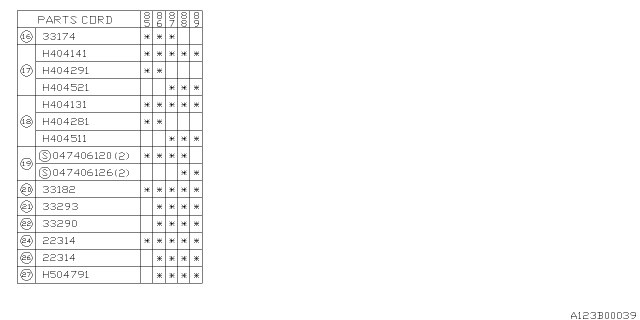

    1988 Subaru GL Series 4WD Vacuum Switch Diagram 4
Sort by:
Part Description
Part Code
Part No.
Part Description
Retail
Price
Your
Price
Qty.
Part No. &
Part Description
  • Actuator Assembly
    33181
    Actuator Assembly
    • Notes:
      -82
    • Fitting Vehicle Options:

      S.4WD/B +SW.(DL+GL/B+4WD/B), (3C+S).(4WD/B+RX/B) +SW.4WD/B

    • Replaced By:
      33181AA021
    $420.36$337.80
  • 33181
    Actuator Assembly
    • Notes:
      83-
    • Fitting Vehicle Options:
      3C.RX/B +S.(4WD/B+RX/B) +SW.4WD/B,

      3C.(DL+RS) +S.DL +SW.(DL+GL/B)

    $420.36$337.80
  • Clip-Band
    W115019
    Clip-Band
    • Fitting Vehicle Options:

      3C.(DL+RS) +S.(DL+4WD/B) +SW.(DL+GL/B4WD/B)

    • Require Quantity:
      02
    • Package Quantity:
      1
    $1.94$1.14
  • W115019
    Clip-Band
    • Fitting Vehicle Options:
      (3C+S).(4WD/B+RX/B) +SW.4WD/B
    • Require Quantity:
      06
    • Package Quantity:
      1
    $1.94$1.14
  • Connector
    72134B
    Connector
    • Fitting Vehicle Options:

      3C.(DL+RS) +S.(DL+4WD/B) +SW.(DL+GL/B4WD/B)

    $4.73$3.35
  • 72134B
    Connector
    • Fitting Vehicle Options:
      (3C+S).(4WD/B+RX/B) +SW.4WD/B
    • Require Quantity:
      02
    • Package Quantity:
      1
    $4.73$3.35
  • H504791
    Hose
    • Require Quantity:
      02
    • Package Quantity:
      1
    $9.95$7.04
  • F90802
    Hose Clamp
    • Require Quantity:
      09
    • Package Quantity:
      1
    • Replaced By:
      805908030
    $1.16$0.68
Genuine Subaru Parts, the Right Choice
SubaruPartsDeal.com offers the wholesale prices for genuine 1988 Subaru GL Series parts. Parts like 4WD Vacuum Switch are shipped directly from authorized Subaru dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options.
