Air Conditioner System fit your 1996 Subaru Legacy

4 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.POST

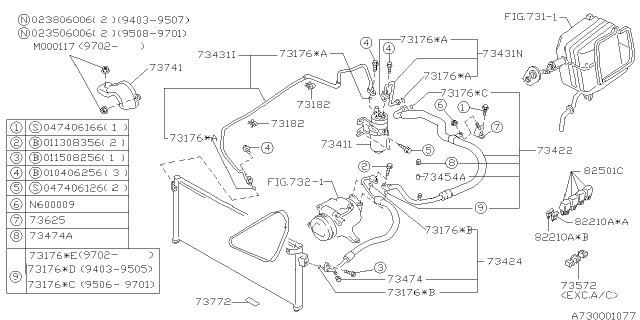

    1996 Subaru Legacy Air Conditioner System Diagram 1
  • 2.POST

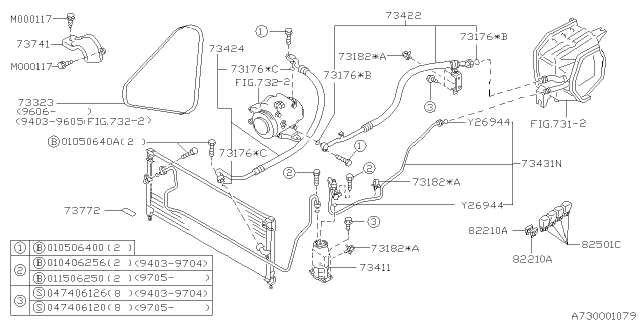

    1996 Subaru Legacy Air Conditioner System Diagram 2
  • 3.S +SW +TW

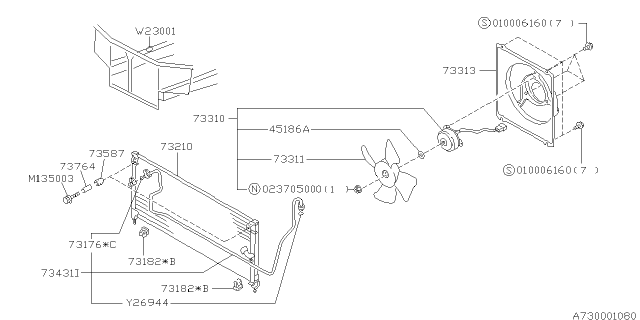

    1996 Subaru Legacy Air Conditioner System Diagram 3
  • 4.S +SW +TW

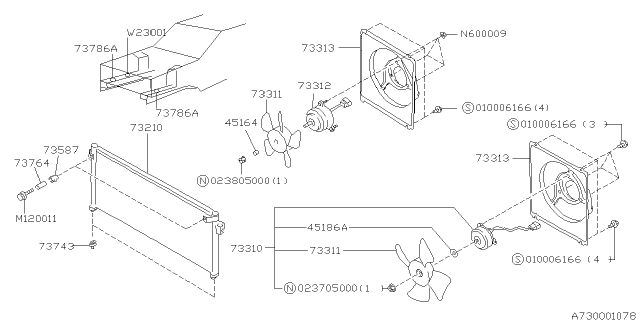

    1996 Subaru Legacy Air Conditioner System Diagram 4
View by Part Code
Part Code
Part No.
Part Description
Retail
Price
Your
Price
Qty.
Part No. & Part Description
  • 73182
    Clamp
    ZXL/580522-6300
    • Notes:
      FOR.A/C
    • Require Quantity:
      02
    • Package Quantity:
      1
    $1.96$1.15
    1
    Add To Cart
  • 73182*A
    Clamp
    ZXL/580522-6300
    • Notes:
      NO.1
    • Require Quantity:
      03
    • Package Quantity:
      1
    $1.96$1.15
    1
    Add To Cart
  • Select vehicle options to narrow down resultCondenser Assembly
    73210
    Condenser Assembly
    ND/447700-0380
    • Fitting Vehicle Options:
      SW.POST
    $329.95$227.27
    1
    Add To Cart
  • 73210
    Condenser Assembly
    • Notes:
      FOR.A/C
    • Fitting Vehicle Options:
      *SW.BRI.EJ22E, S.L#.EJ22E +(S+SW).(LSI+GT) +SW.2W.L.AT +SW.F4W.L#.EJ22E +TW.(EJ22E+EJ25D)
    • Replaced By:
      73210AC021
    $493.80$396.82
    1
    Add To Cart
  • 73210
    Condenser Assembly
    • Notes:
      FOR.A/C
    • Fitting Vehicle Options:
      *SW.BRI, S +SW.(L#+GT) +TW
    $493.80$396.82
    1
    Add To Cart
  • Select vehicle options to narrow down resultCover-Belt
    73741Subaru 73770AC000
    Cover-Belt
    • Fitting Vehicle Options:
      SW.POST.EJ22E
    • Replaced By:
      73741FE001
    $8.20$5.76
    1
    Add To Cart
  • 73741Subaru 73770AC010
    Cover-Belt
    • Notes:
      FOR.A/C
    • Fitting Vehicle Options:
      *SW.BRI, S +SW.(L#+GT) +TW, SW.POST
    • Replaced By:
      73741FE001
    $8.20$5.76
    1
    Add To Cart
  • Select vehicle options to narrow down resultFan
    73311Subaru 73031GA130
    Fan
    • Fitting Vehicle Options:
      S.(LSI+GT) +SW.(LSI+GT) +TW.AT
    $10.10$7.09
    1
    Add To Cart
  • 73311Subaru 73311AC000
    Fan
    • Notes:
      FOR.A/C
    • Fitting Vehicle Options:
      *SW.BRI, S.(L+LS) +SW.(L+LS) +TW.MT, SW.POST
    $55.95$38.87
    1
    Add To Cart
  • Select vehicle options to narrow down resultFlange Bolt
    M000117Subaru 901000117
    Flange Bolt
    • Notes:
      FOR.A/C
    • Fitting Vehicle Options:
      *SW.BRI, S +SW.(L#+GT) +TW
    $1.46$0.85
    1
    Add To Cart
  • M000117Subaru 901000117
    Flange Bolt
    • Fitting Vehicle Options:
      SW.POST
    • Require Quantity:
      02
    • Package Quantity:
      1
    $1.46$0.85
    1
    Add To Cart
  • 73587Subaru 73794AC000
    Grommet
    • Notes:
      FOR.A/C
    • Require Quantity:
      02
    • Package Quantity:
      1
    $2.77$1.94
    1
    Add To Cart
  • Select vehicle options to narrow down resultHose Assembly-Ps
    73422Subaru 73422AC000
    Hose Assembly-Ps
    ND/44611-0600
    • Fitting Vehicle Options:
      SW.POST
    • Replaced By:
      73422AC030
    ----
  • 73422Subaru 73422AC040
    Hose Assembly-Ps
    972312-8042
    • Notes:
      FOR.A/C
    • Fitting Vehicle Options:
      *SW.BRI, S +SW.(L#+GT) +TW
    $190.75$132.53
    1
    Add To Cart
  • N600009Subaru 902600009
    Nut
    • Notes:
      FOR.A/C
    • Require Quantity:
      04
    • Package Quantity:
      1
    $1.02$0.60
    1
    Add To Cart
  • Y26944Subaru 73796KC000
    O Ring
    ND/949142-0010
    • Require Quantity:
      03
    • Package Quantity:
      1
    $6.02$4.22
    1
    Add To Cart
  • 82501C
    Relay Assembly
    • Notes:
      FOR.A/C
    • Require Quantity:
      04
    • Package Quantity:
      1
    • Replaced By:
      82501AA210
    $46.22$32.11
    1
    Add To Cart
  • 73176*ASubaru 73039AA060
    Seal O Ring
    ZXL/581520-7700
    • Notes:
      NO.1 FOR.A/C
    • Require Quantity:
      03
    • Package Quantity:
      1
    $1.87$1.31
    1
    Add To Cart
  • Select vehicle options to narrow down resultSeal O Ring
    73176*BSubaru 73039AA080
    Seal O Ring
    ZXL/596193-8800
    • Notes:
      NO.2 FOR.A/C
    • Fitting Vehicle Options:
      *SW.BRI, S +SW.(L#+GT) +TW
    • Require Quantity:
      02
    • Package Quantity:
      1
    $1.90$1.11
    1
    Add To Cart
  • 73176*BSubaru 73796KC010
    Seal O Ring
    ND/949142-0030
    • Notes:
      NO.2
    • Fitting Vehicle Options:
      SW.POST
    • Require Quantity:
      02
    • Package Quantity:
      1
    $6.97$4.89
    1
    Add To Cart
  • Select vehicle options to narrow down resultSeal O Ring
    73176*CSubaru 73039AA090
    Seal O Ring
    ZXL/596193-9400
    • Notes:
      NO.3 FOR.A/C
    • Fitting Vehicle Options:
      *SW.BRI, S +SW.(L#+GT) +TW
    • Require Quantity:
      02
    • Package Quantity:
      1
    $2.37$1.66
    1
    Add To Cart
  • 73176*CSubaru 73796KC020
    Seal O Ring
    ND/949142-0020
    • Notes:
      NO.3
    • Fitting Vehicle Options:
      SW.POST
    • Require Quantity:
      03
    • Package Quantity:
      1
    $4.45$3.12
    1
    Add To Cart
  • Select vehicle options to narrow down resultShroud-Sub Fan
    73313Subaru 73043AA000
    Shroud-Sub Fan
    • Fitting Vehicle Options:
      S.(LSI+GT) +SW.(LSI+GT) +TW.AT
    $31.55$21.92
    1
    Add To Cart
  • 73313Subaru 73313AC000
    Shroud-Sub Fan
    • Notes:
      FOR.A/C
    • Fitting Vehicle Options:
      *SW.BRI, S.(L+LS) +SW.(L+LS) +TW.MT, SW.POST
    $87.98$61.13
    1
    Add To Cart
  • 73764Subaru 73792AC000
    Spacer
    • Notes:
      FOR.A/C
    • Require Quantity:
      02
    • Package Quantity:
      1
    $1.40$0.82
    1
    Add To Cart
Genuine Subaru Parts, the Right Choice
SubaruPartsDeal.com offers the wholesale prices for genuine 1996 Subaru Legacy parts. Parts like Air Conditioner System are shipped directly from authorized Subaru dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options.
