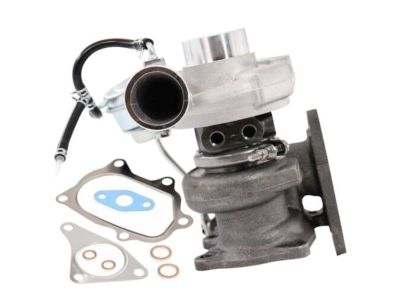

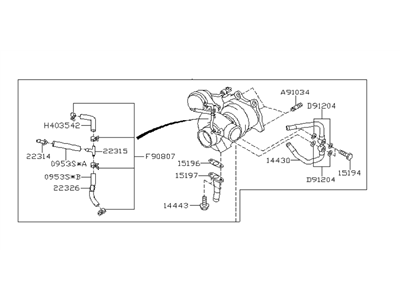

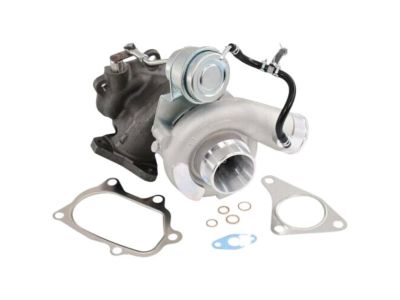

Subaru 14411AA532 TURBOCHARGER Assembly

Disconnect the negative battery terminal and remove the engine cover, inter-cooler, front exhaust pipe, and turbocharger joint pipe. Remove the coolant return hose, turbocharger, oil inlet line bracket bolt, banjo bolts, coolant hose, and right turbocharger bracket. Remove the oil outlet hose and turbocharger. Strip remaining parts and install on the new turbocharger. Use new sealing washers for banjo fittings. Tighten banjo bolts to torque. Use a new gasket and nuts for the joint pipe. Apply anti-seize compound to studs and tighten nuts to torque. Refill coolant and oil, start the engine and check for leaks.

A turbocharger system increases engine horsepower by means of an exhaust gas-driven turbine that turns an impeller, or compressor, which in turn pressurizes the air entering the intake manifold. The turbocharger assembly consists of two lightweight, thin-wall, heat resistant castings, a common shaft riding on full-floating bearings, a water-cooled system, and an engine oil pump for lubrication. The waste gate valve is designed to restrict the maximum boost level by allowing some of the exhaust gases to by pass the turbine when boost pressure gets too high, and the waste gate controller solenoid valve keeps the waste gate controller closed to optimize the pressure on the outlet side of the compressor. The air bypass valve reduces the braking effect on the turbocharger when the throttle plate is snapped shut during deceleration, and the inter cooler cools down the hot intake air passing through it, making it denser again and therefore able to provide more oxygen for the combustion process. The PCM and the various sensors control the system, and inspection should be left to a dealer service department, though you can inspect some things yourself, such as a cracked turbo mounting flange, a blocked or restricted oil supply line, a worn out or overheated turbine/compressor shaft bearing or a defective waste ate actuator.

A turbocharger system increases engine horse power by means of an exhaust gas-driven turbine that turns an impeller, or compressor, which in turn pressurizes the air entering the intake manifold. The turbocharger assembly is composed of two separate castings, the housing for the turbine is cast iron and the housing for the compressor is aluminum. The waste gate valve is designed to restrict the maximum boost level by allowing some of the exhaust gases to bypass the turbine when boost pressure gets too high. The wastegate controller solenoid valve keeps the wastegate controller closed to optimize the pressure on the outlet side of the compressor. The air bypass valve reduces the braking effect on the turbocharger by routing the excess air back to the turbocharger inlet duct. The turbocharger is lubricated by engine oil pumped through the turbocharger housing by the engine oil pump. You can inspect some things yourself such as a cracked turbo mounting flange, a blocked or restricted oil supply line, a worn out or overheated turbine/compressor shaft bearing or a defective waste gate actuator.
